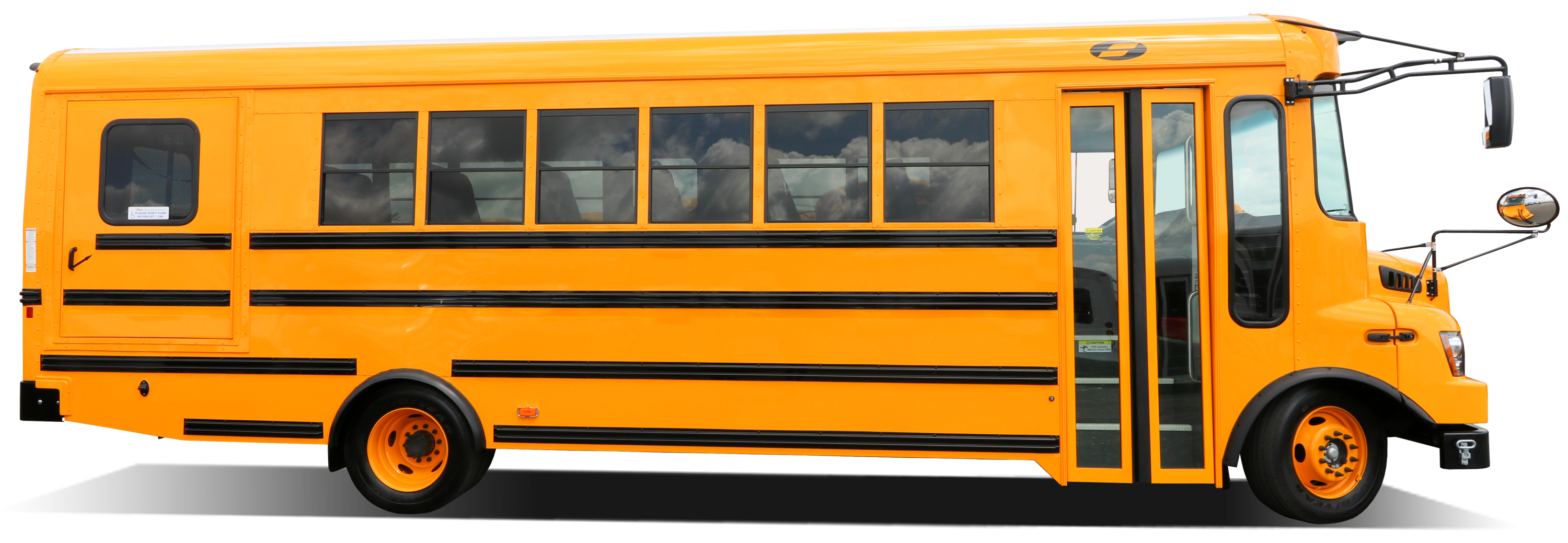

E-Quest XL

The Starcraft E-Quest XL is a 100% all-electric Type C school bus powered by Motiv Power Systems. Motiv is a Ford eQVM-approved provider of all-electric chassis benefiting from Ford’s facilitated and reliable maintenance for support. Built on the Ford F-59 chassis, this 100% zero-emission bus can accommodate up to 47 ambulatory passengers and with removable seating, or up up to 8 wheelchairs. The Starcraft E-Quest XL is the only all-electric Type C scool bus manufactured for special needs transportation.

Floorplans

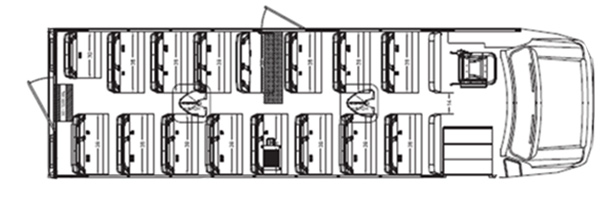

  • 47 PASSENGER PLUS DRIVER

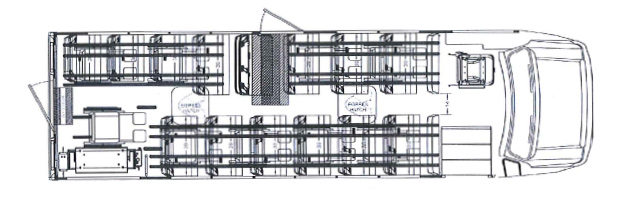

  • 39 PASSENGER 1 WHEELCHAIR PLUS DRIVER
Previous Next

Standard Specifications

    • Length:
      • 30'
    • Wheelbase:
      • 208"
    • Chassis:
      • F59
    • Engine:
      • 6.8L V10
    • GVWR:
      • 23,000 lb.
    • Passenger Capacity:
      • 35+1/Up to 47
    • Overall Width:
      • 96”
    • Overall Height:
      • 124"
    • Interior Width:
      • 92.5"
    • Interior Height:
      • 78"
    • Ground To Int. Floor:
      • 41.5"
    • Ground to 1st Step:
      • 11.5"
    • Step Riser:
      • 9.75"
    • Step Tread:
      • 10.25"
    • Step Width:
      • 31.625"
    • Entry Door Clear Opening With One Grab Rail:
      • 28.625"
    • Entry Door Clear Opening With Two Grab Rail:
      • 25.5"
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 22’
      • 24’
      • 25’
    • Wheelbase:
      • 158”
      • 158”
      • 190”
    • Chassis:
      • E450
      • E450
      • E450
    • Engine:
      • 6.8L Gas
      • 6.8L Gas
      • 6.8L Gas
    • GVWR:
      • 12,500lb.
      • 14,500lb.
      • 14,500lb.
    • Passenger Capacity*:
      • 21
      • 21
      • 25
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 115”
      • 116”
      • 116”
    • Interior Width:
      • 93”
      • 93”
      • 93”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 30”
      • 30”
      • 30”
    • Ground to 1st Step:
      • 12”
      • 12”
      • 12”
    • Step Riser:
      • 9”
      • 9”
      • 9”
    • Step Tread:
      • 11.5”
      • 11.5”
      • 11.5”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    * All passenger capacities are references and subject to final weight anaylsis
