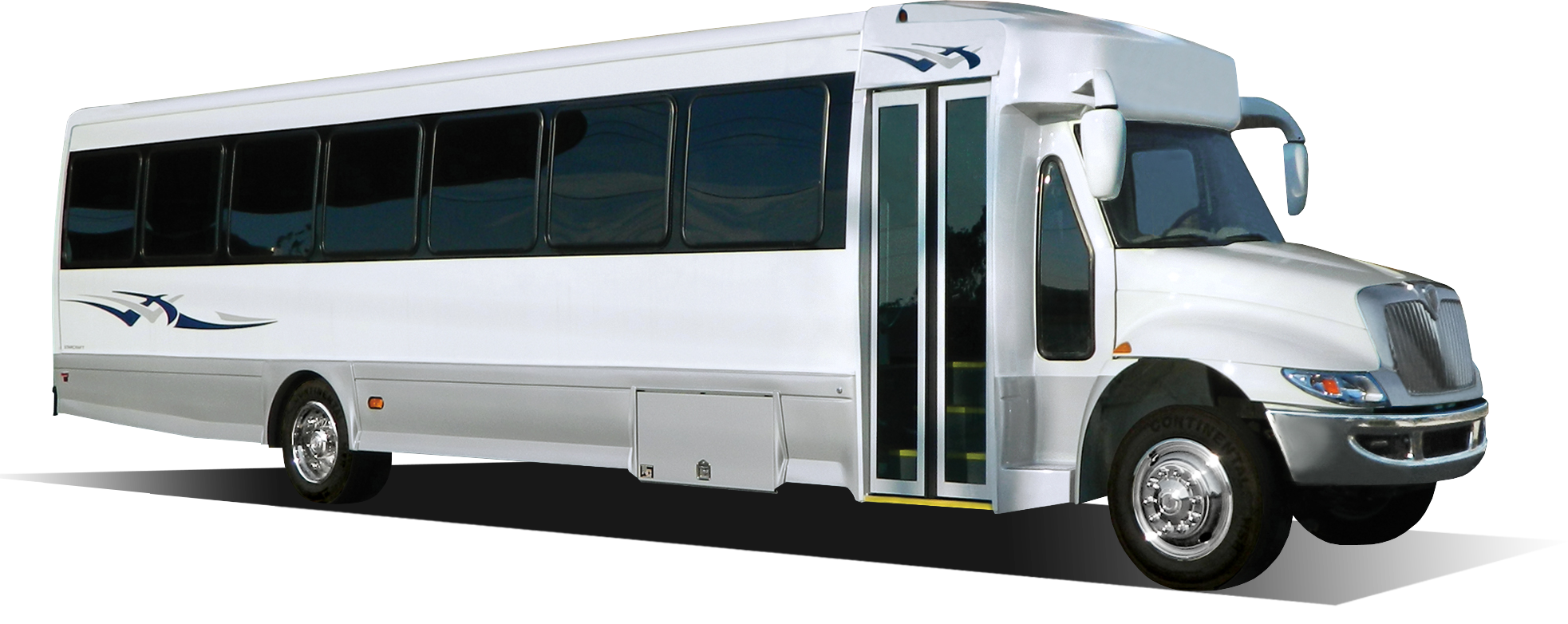

Allstar XLT

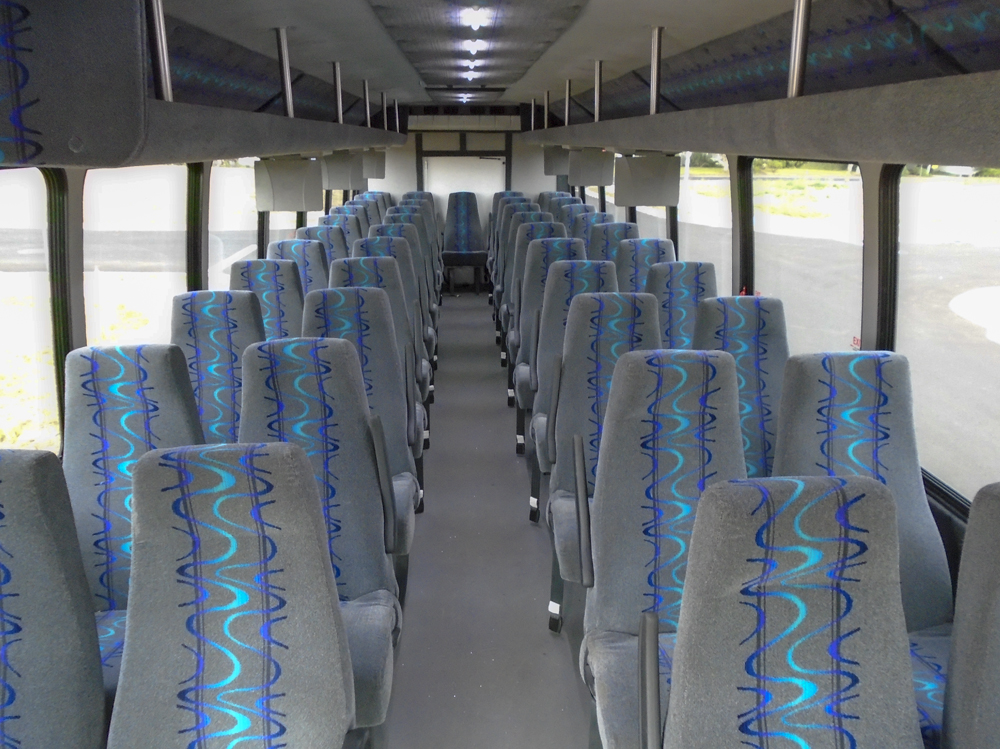

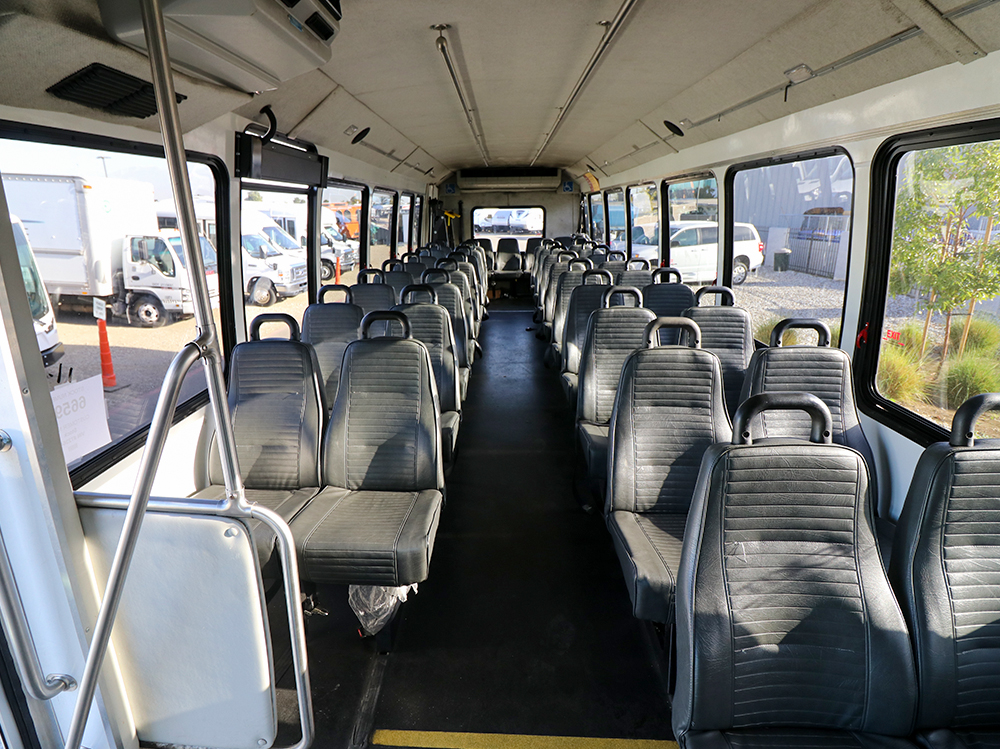

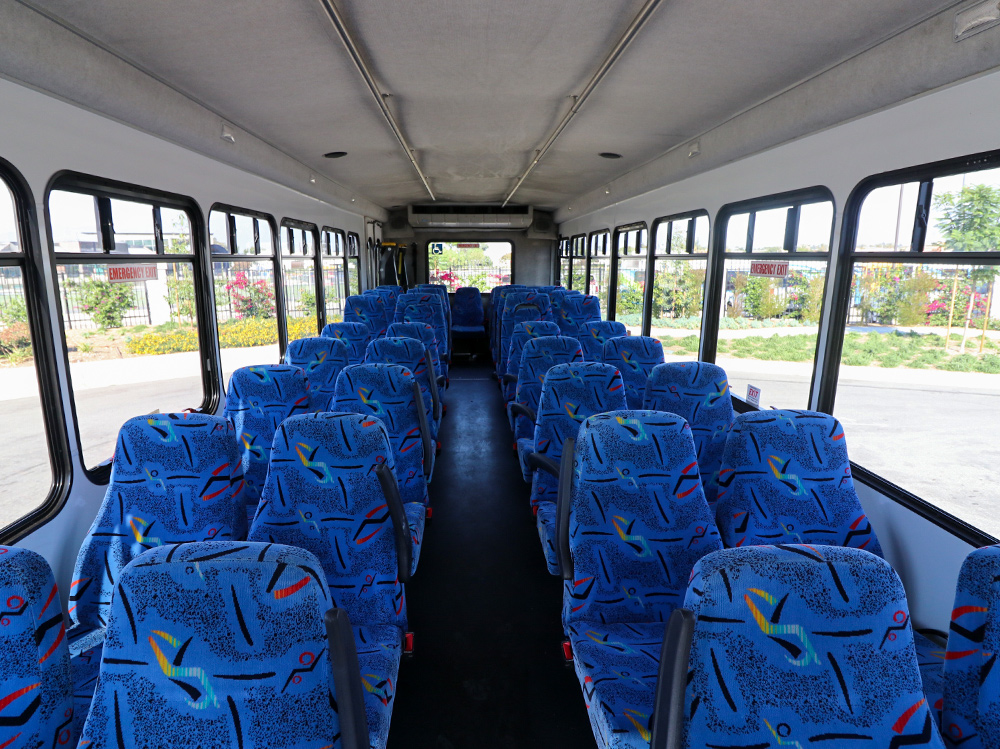

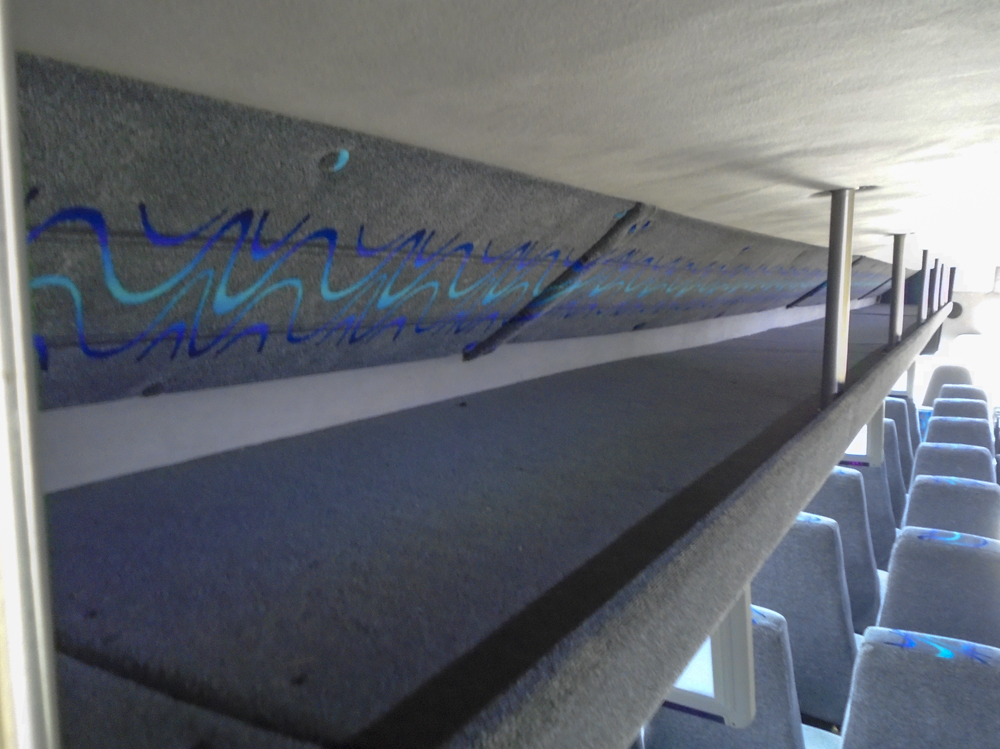

The Allstar XLT Series is engineered to provide maximum comfort without sacrificing standard safety features. Seating configuration options range between 29 and 44 ambulatory passengers. The Allstar XLT provides larger luggage capacity and an optional skirt-mounted storage pod for tour operators, senior centers, churches and college sports teams that need the extra space. With ample shoulder and headroom, the 102” wide XLT is spacious enough to accommodate up to 43 passengers in wide 19” seats. For an elevated luxury experience, the Allstar XLT can be upgraded with media entertainment systems viewable from any seat, overhead/rear/undercarriage luggage compartments, and even mobile WiFi. The Allstar XLT’s truck chassis boasts a fully welded steel cage, a one-piece, seamless FRP roof that reduces the potential for leaks with stylish exterior finishes such as fiber-glass caps, fiberglass skirts, and Alucobond exterior sidewalls to eliminate corrosion. Wheelchair seating options available.

Floorplans

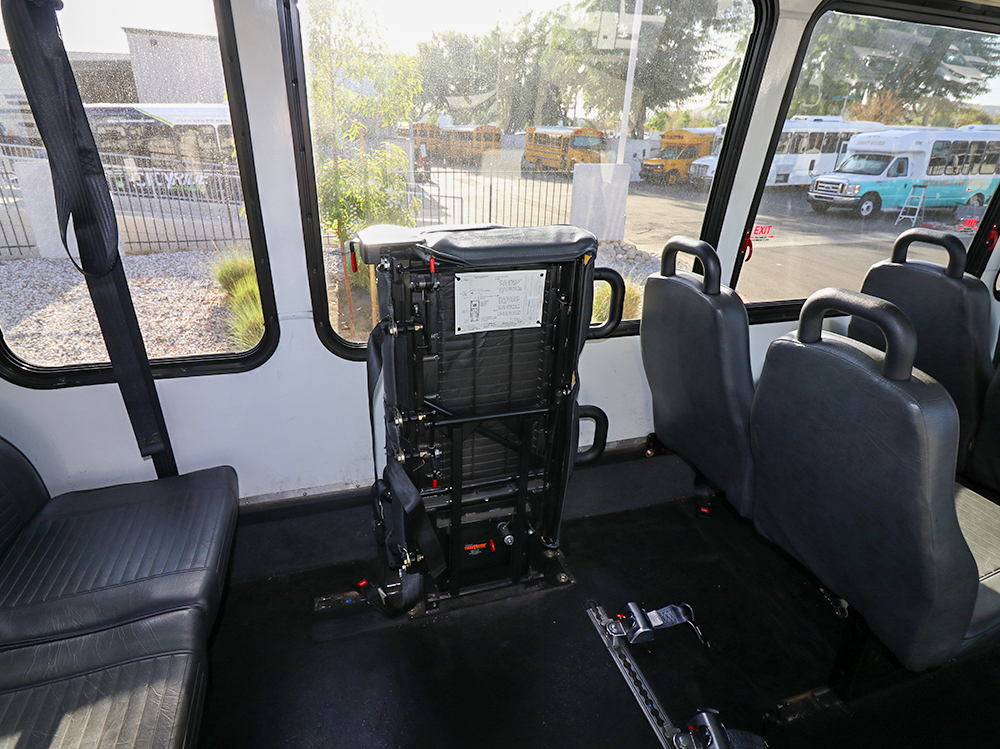

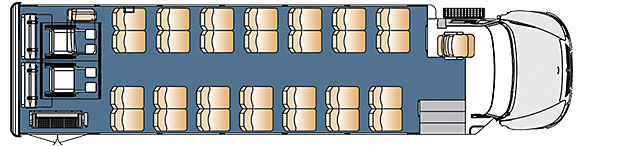

  • 28 PASSENGER 2 WHEELCHAIR WITH FLIP AND FOLDAWAY SEATS PLUS DRIVER

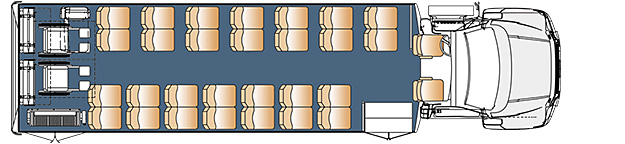

  • 29 PASSENGER 2 WHEELCHAIR WITH FLIP AND FOLDAWAY SEATS PLUS DRIVER AND COPILOT

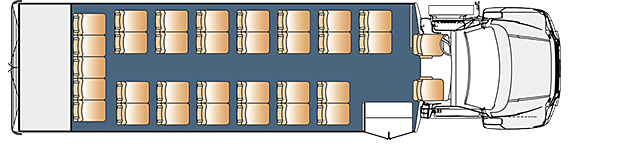

  • 32 PASSENGER WITH REAR LUGGAGE PLUS DRIVER AND COPILOT

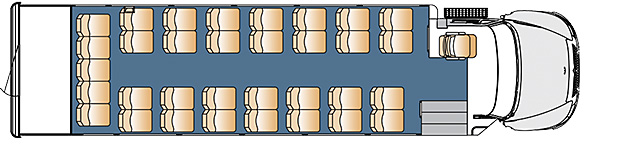

  • 33 PASSENGER WITH REAR LUGGAGE PLUS DRIVER

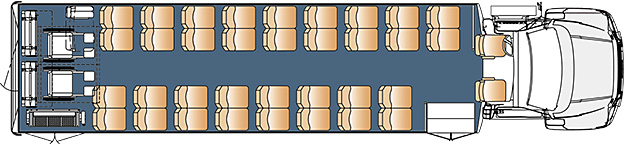

  • 35 PASSENGER 2 WHEELCHAIR WITH FLIP AND FOLDAWAY SEATS PLUS DRIVER AND COPILOT

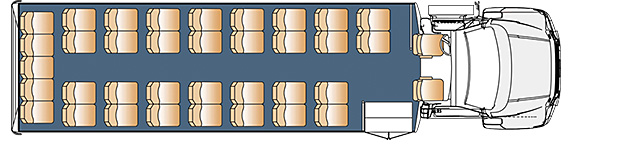

  • 36 PASSENGER PLUS DRIVER AND COPILOT

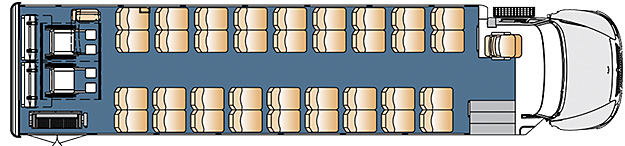

  • 36 PASSENGER 2 WHEELCHAIR WITH FLIP AND FOLDAWAY SEATS PLUS DRIVER

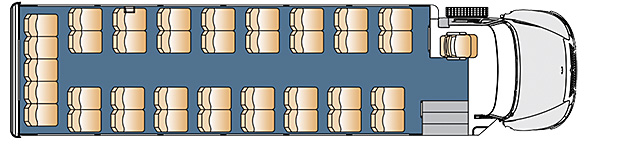

  • 37 PASSENGER PLUS DRIVER

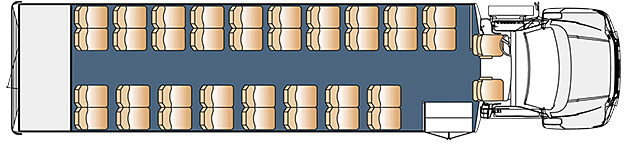

  • 37 PASSENGER WITH REAR LUGGAGE PLUS DRIVER AND COPILOT

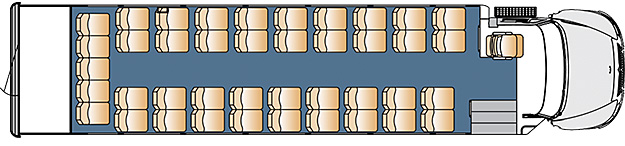

  • 41 PASSENGER WITH REAR LUGGAGE PLUS DRIVER

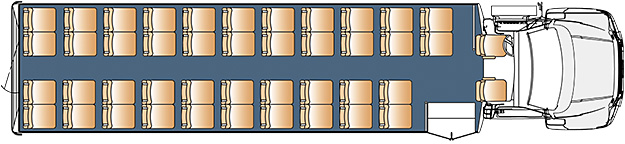

  • 43 PASSENGER PLUS DRIVER AND COPILOT

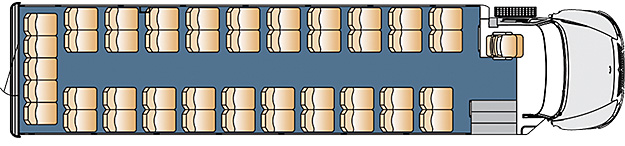

  • 45 PASSENGER PLUS DRIVER
Previous Next

Standard Specifications

    • Length:
      • 32’
      • 36’
      • 40’
    • Wheelbase:
      • 234”
      • 276”
      • 291”
    • Chassis:
      • F-650
      • F-650
      • F-650
    • Engine:
      • Cummins ISB 240HP
      • Cummins ISB 240HP
      • Cummins ISB 240HP
    • GVWR:
      • 25,999 lb.
      • 25,999 lb.
      • 25,999 lb.
    • Passenger Capacity:
      • 30
      • 38
      • 44
    • Overall Width:
      • 102”
      • 102”
      • 102”
    • Overall Height:
      • 124”
      • 124”
      • 124”
    • Interior Width:
      • 97.5”
      • 97.5”|
      • 97.5”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 42”
      • 42”
      • 42”
    • Ground to 1st Step:
      • 13.5”
      • 13.5”
      • 13.5”
    • Step Riser:
      • 9.5”
      • 9.5”
      • 9.5”
    • Step Tread:
      • 10”
      • 10”
      • 10”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 32’
      • 36’
      • 40’
    • Wheelbase:
      • 234”
      • 276”
      • 305”
    • Chassis:
      • International T/C
      • International T/C
      • International T/C
    • Engine:
      • Cummins ISB 240HP
      • Cummins ISB 240HP
      • Cummins ISB 240HP
    • GVWR:
      • 27500/30,000 lb.
      • 27500/30,000 lb.
      • 27500/30,000 lb.
    • Passenger Capacity:
      • 33
      • 39
      • 45
    • Overall Width:
      • 102”
      • 102”
      • 102”
    • Overall Height:
      • 128”
      • 128”
      • 128”
    • Interior Width:
      • 97.5”
      • 97.5”
      • 97.5”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 42”
      • 42”
      • 42”
    • Ground to 1st Step:
      • 14”
      • 14”
      • 14”
    • Step Riser:
      • 9.5”
      • 9.5”
      • 9.5”
    • Step Tread:
      • 10”
      • 10”
      • 10”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
