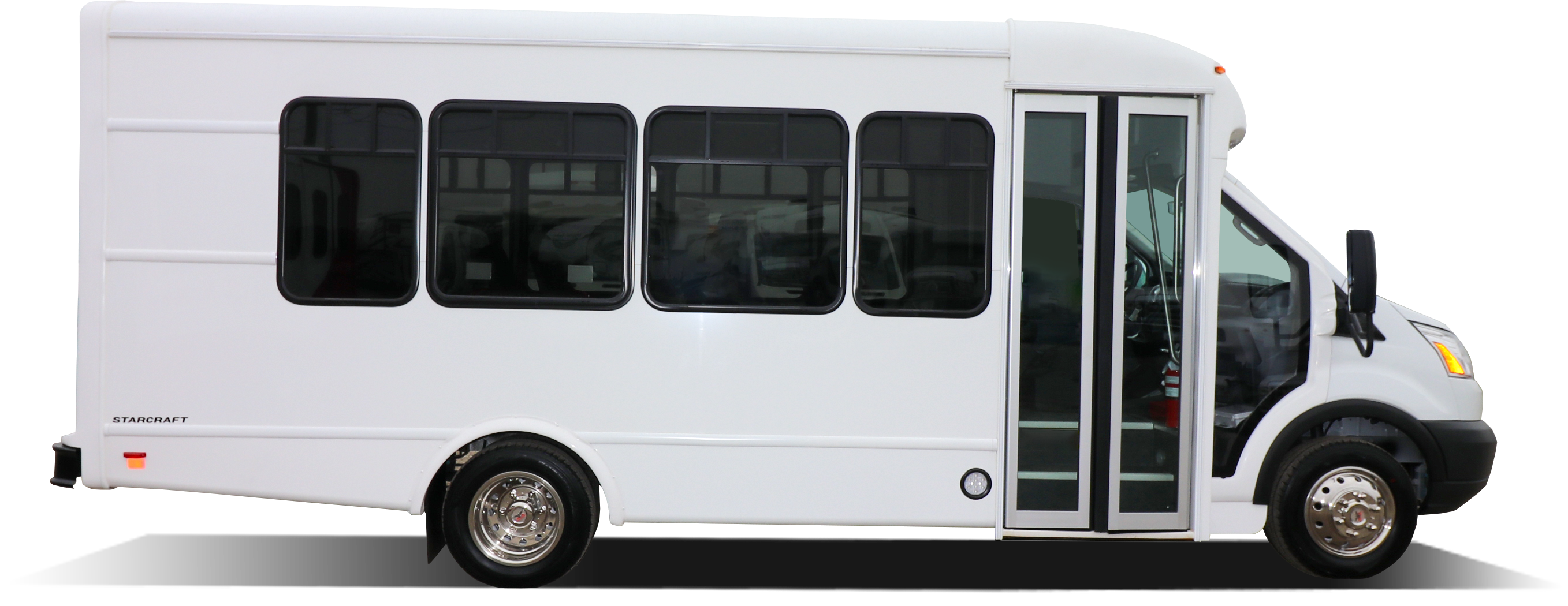

Starlite


The Starcraft Starlite is a light-duty shuttle with narrow body construction for superior driveability. With a small turning radius, the dual rear wheel drive shuttle bus offers improved handling and stability. Seating configuration options can accommodate a minimum of 8 passengers with 2 wheelchair seats and a maximum of up to 14 ambulatory passengers. In most states, a commercial driver’s license isn’t needed to operate the Starlite thereby increasing the availability of your operation’s transportation services (check your state’s requirements). Backed by Starcraft’s unprecedented 5 year/100,000 warranty, the Starlite offers uncompromised Starcraft dependability.

Floorplans

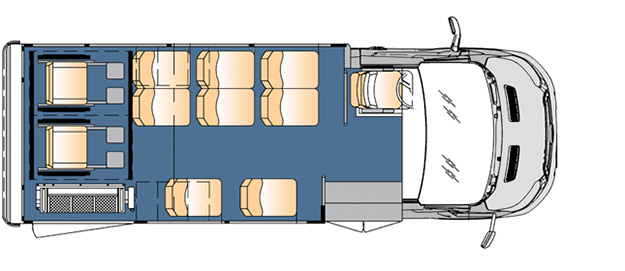

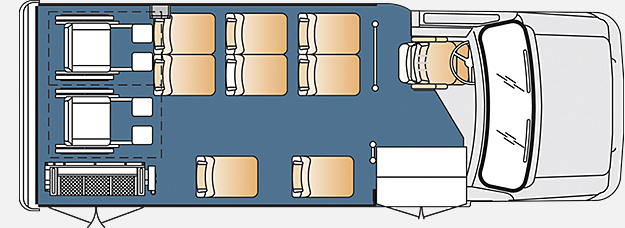

  • 8 PASSENGER 2 WHEELCHAIR PLUS DRIVER
  • 8 PASSENGER 2 WHEELCHAIR PLUS DRIVER

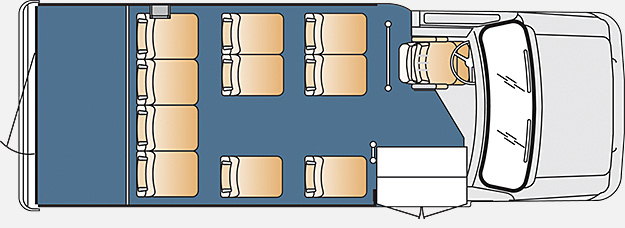

  • 10 PASSENGER WITH REAR LUGGAGE PLUS DRIVER

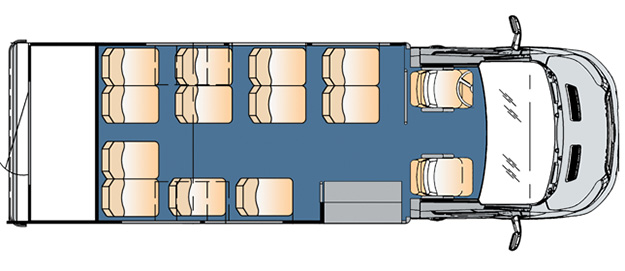

  • 12 PASSENGER WITH REAR LUGGAGE PLUS DRIVER

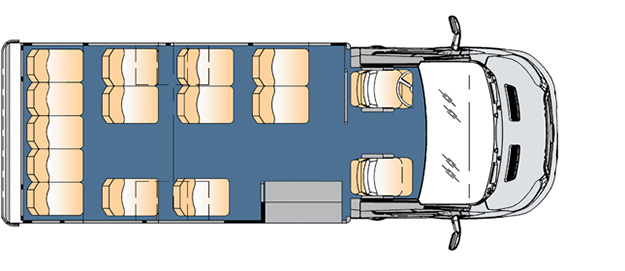

  • 13 PASSENGER PLUS DRIVER

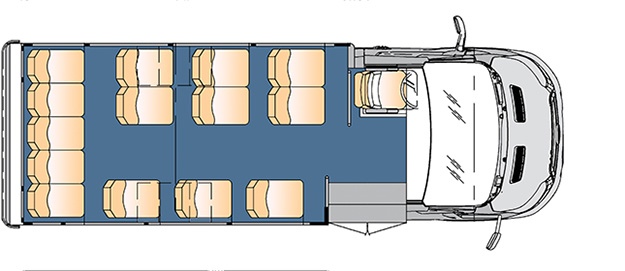

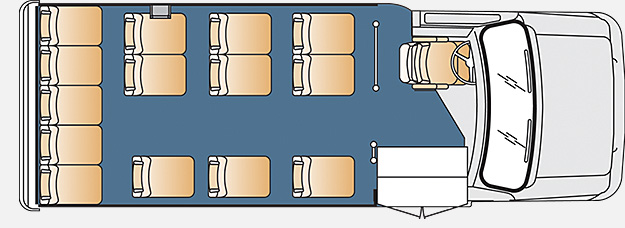

  • 14 PASSENGER PLUS DRIVER
  • 14 PASSENGER PLUS DRIVER

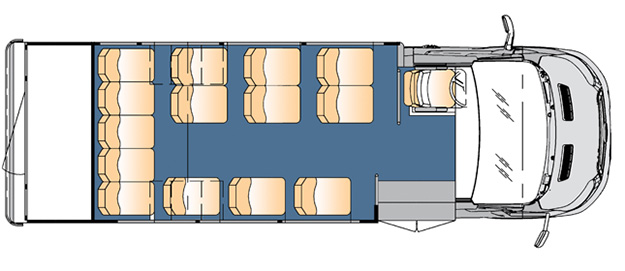

  • 14 PASSENGER WITH REAR LUGGAGE PLUS DRIVER
Previous Next

Standard Specifications

    • Length:
      • 20’
    • Wheelbase:
      • 138”
    • Chassis:
      • E350
    • Engine:
      • E350
    • GVWR:
      • E350
    • Passenger Capacity:
      • 14
    • Overall Width:
      • 84”
    • Overall Height:
      • 112”
    • Interior Width:
      • 81”
    • Interior Height:
      • 77”
    • Ground To Int. Floor:
      • 31”
    • Ground to 1st Step:
      • 11.5”
    • Step Riser:
      • 9.75”
    • Step Tread:
      • 9.5”
    • Step Width:
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 22’
    • Wheelbase:
      • 138”
    • Chassis:
      • E350/E450
    • Engine:
      • 6.8L Gas
    • GVWR:
      • 12,500 lb.
    • Passenger Capacity:
      • 16
    • Overall Width:
      • 84”
    • Overall Height:
      • 113”
    • Interior Width:
      • 81”
    • Interior Height:
      • 77”
    • Ground To Int. Floor:
      • 31”
    • Ground to 1st Step:
      • 11.5”
    • Step Riser:
      • 9.75”
    • Step Tread:
      • 9.5”
    • Step Width:
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 22’
      • 24’
    • Wheelbase:
      • 138”
      • 156”
    • Chassis:
      • 3500
      • 3500
    • Engine:
      • 3.7L Gas
      • 3.7L Gas
    • GVWR:
      • 10,360 lb.
      • 10,360 lb.
    • Passenger Capacity:
      • 14
      • 16
    • Overall Width:
      • 84”
      • 84”
    • Overall Height:
      • 110”
      • 110”
    • Interior Width:
      • 81”
      • 81”
    • Interior Height:
      • 76”
      • 76”
    • Ground To Int. Floor:
      • 29”
      • 29”
    • Ground to 1st Step:
      • 11”
      • 11”
    • Step Riser:
      • 9”
      • 9”
    • Step Tread:
      • 9.5”
      • 9.5”
    • Step Width:
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
