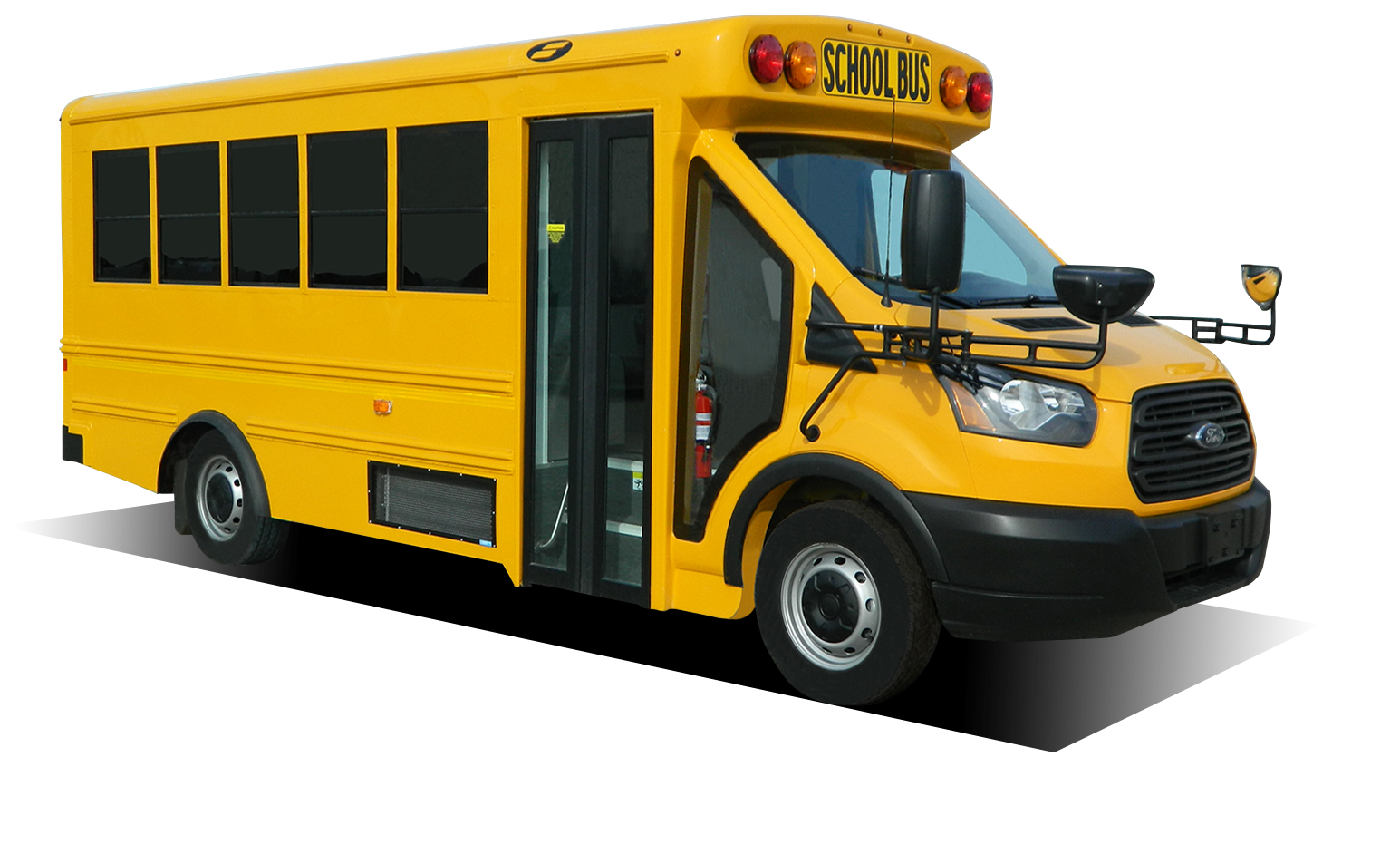

Quest SWR


The Starcraft Quest SRW boasts the longest list of standard safety features in the industry including a standard safety backup camera, welded steel cage construction, and a welded seat track. The Quest SRW is engineered to meet or exceed all FMVSS school bus standards to ensure student safety. This single rear wheel drive school bus offers seating configurations ranging between 14 and 16 ambulatory passengers. Wheelchair floor plans also available with side wheelchair lifts available. Available on the Ford E350 and GM 3500 chassis. With exceptional maneuverability & visibility, a one-piece roof, this bus prioritizes student safety while providing maximum dependability.

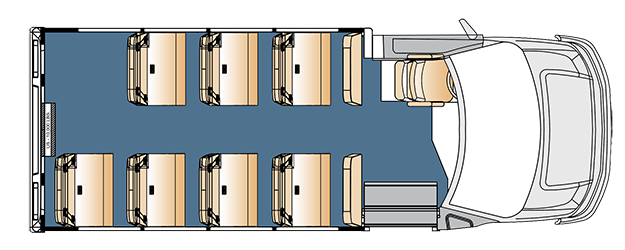

Floorplans

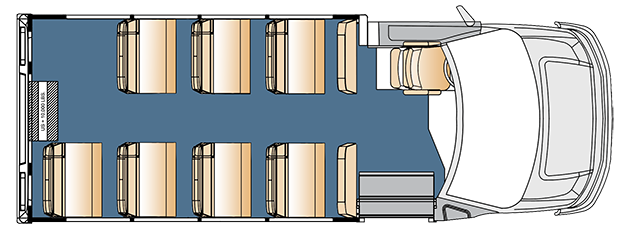

  • 14 PASSENGER PLUS DRIVER
  • 14 PASSENGER PLUS DRIVER

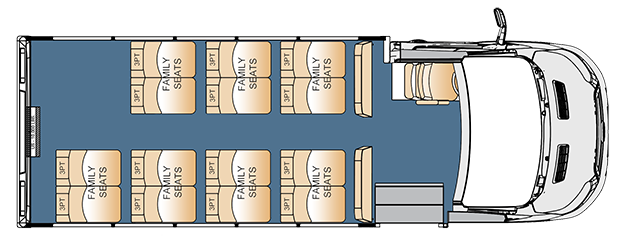

  • 14 PASSENGER 3PTS PLUS DRIVER

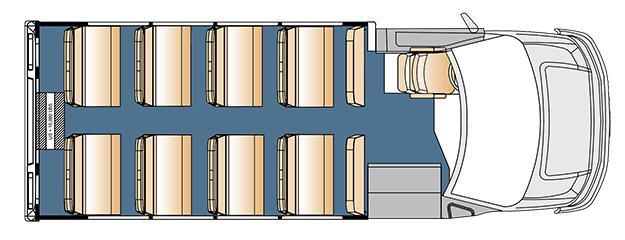

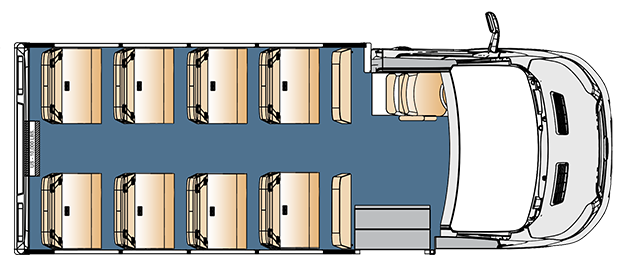

  • 16 PASSENGER PLUS DRIVER
  • 16 PASSENGER PLUS DRIVER
Previous Next

Standard Specifications

    • Sections:
      • 4.00
      • 4.00
      • 5.00
    • Length:
      • 240’
      • 248’
      • 264’
    • Wheelbase:
      • 139”
      • 139”
      • 139”
    • Chassis:
      • G3500
      • G3500
      • G3500
    • Engine:
      • 4.3L Gas
      • 4.3L Gas
      • 4.3L Gas
    • GVWR:
      • 10,100 lb.
      • 10,100 lb.
      • 10,100 lb.
    • Passenger Capacity:
      • 16
      • 16
      • 19
    • Overall Width:
      • 84”
      • 84”
      • 84”
    • Overall Height:
      • 106”
      • 106”
      • 106”
    • Interior Width:
      • 80.5”
      • 80.5”
      • 80.5”
    • Interior Height:
      • 72”
      • 72”
      • 72”
    • Ground To Int. Floor:
      • 28”
      • 28”
      • 28”
    • Ground to 1st Step:
      • 12.5”
      • 12.5”
      • 12.5”
    • Step Riser:
      • 7.5”
      • 7.5”
      • 7.5”
    • Step Tread:
      • 8.5”
      • 8.5”
      • 8.5”
    • Step Width:
      • 29.5”
      • 29.5”
      • 29.5”
    • Entry Door Clear Opening With One Grab Rail:
      • 26”
      • 26”
      • 26”
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5”
      • 23.5”
      • 23.5”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Sections:
      • 4.50
      • 5.00
    • Length:
      • 241’
      • 258’
    • Wheelbase:
      • 138”
      • 138”
    • Chassis:
      • E350
      • E350
    • Engine:
      • 6.2L Gas/6.8L Gas
      • 6.2L Gas/6.8L Gas
    • GVWR:
      • 10,050 lb.
      • 10,050 lb.
    • Passenger Capacity:
      • 17
      • 17
    • Overall Width:
      • 84”
      • 84”
    • Overall Height:
      • 106”
      • 106”
    • Interior Width:
      • 80.5”
      • 80.5”
    • Interior Height:
      • 72”
      • 72”
    • Ground To Int. Floor:
      • 29”
      • 29”
    • Ground to 1st Step:
      • 12.5”
      • 12.5”
    • Step Riser:
      • 7.5”
      • 7.5”
    • Step Tread:
      • 8.5”
      • 8.5”
    • Step Width:
      • 29.5”
      • 29.5”
    • Entry Door Clear Opening With One Grab Rail:
      • 26”
      • 26”
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5”
      • 23.5”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Sections:
      • 4.00
      • 4.50
      • 5.00
    • Length:
      • 239’
      • 250’
      • 261’
    • Wheelbase:
      • 138”
      • 138”
      • 138”
    • Chassis:
      • Ford Transit
      • Ford Transit
      • Ford Transit
    • Engine:
      • 3.7L Gas/3.2L Diesel
      • 3.7L Gas/3.2L Diesel
      • 3.7L Gas/3.2L Diesel
    • GVWR
      • 9,500 lb.
      • 9,500 lb.
      • 9,500 lb.
    • Passenger Capacity:
      • 14
      • 16
      • 20
    • Overall Width:
      • 80”
      • 80”
      • 80”
    • Overall Height:
      • 102”
      • 102”
      • 102”
    • Interior Width:
      • 76.5”
      • 76.5”
      • 76.5”
    • Interior Height:
      • 69”
      • 69”
      • 69”
    • Ground To Int. Floor:
      • 29”
      • 29”
      • 29”
    • Ground to 1st Step:
      • 10.5”
      • 10.5”
      • 10.5”
    • Step Riser:
      • 8.5”
      • 8.5”
      • 8.5”
    • Step Tread:
      • 8.25”
      • 8.25”
      • 8.25”
    • Step Width:
      • 29.5”
      • 29.5”
      • 29.5”
    • Entry Door Clear Opening With One Grab Rail:
      • 26”
      • 26”
      • 26”
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5”|
      • 23.5”
      • 23.5”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
