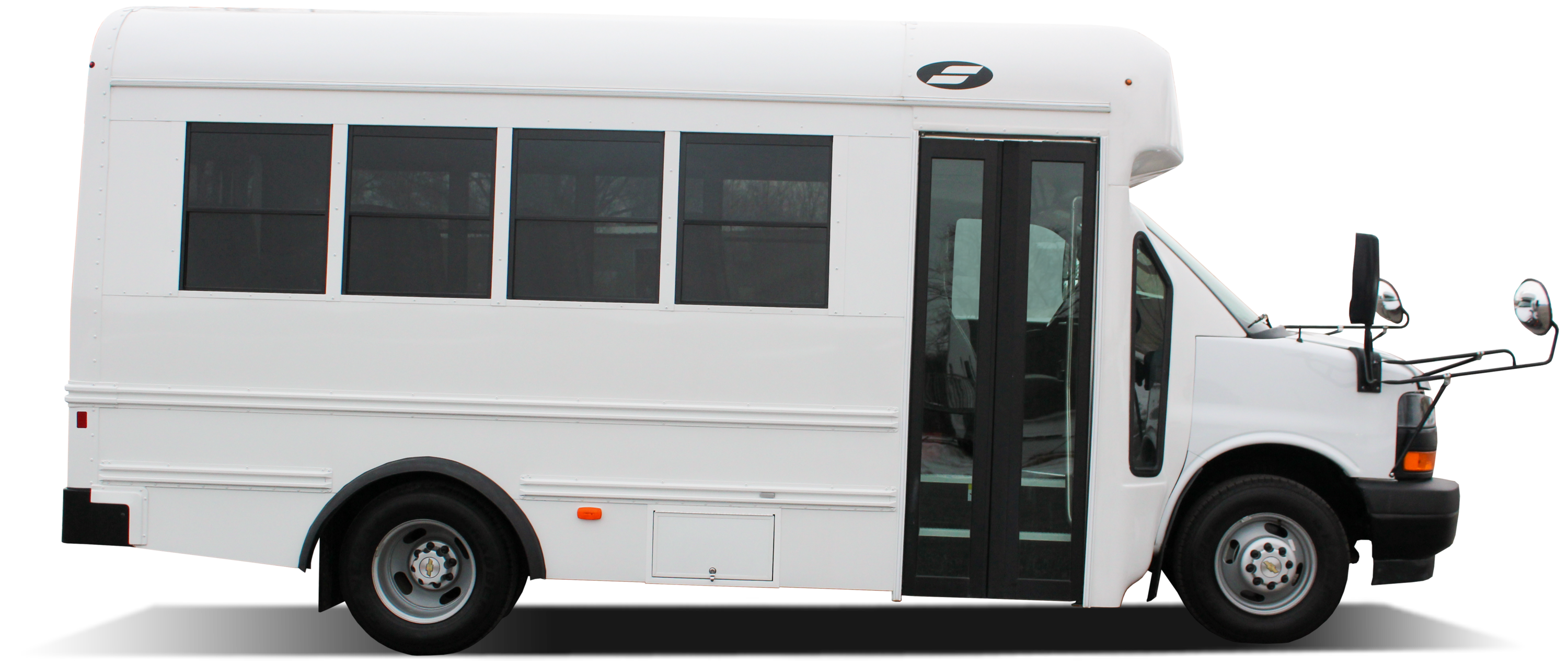

Prodigy DWR



The Starcraft Prodigy DRW is a dual rear wheel drive shuttle that features welded steel cage construction for maximum safety. The Prodigy DRW Bus meets or exceeds all FMVSS school bus standards making it an ideal MFSAB for daycares and school-oriented operations. With a standard backup camera and a standard child checkmate system to fulfill new federal mandates, the dual rear wheel drive MFSAB is ideal for student-centric operations such as daycares and schools. Seating options range between 12 ambulatory passengers with 2 wheelchair positions or a maximum of up to 16 ambulatory passenger seats. The Integrated Child Seating (ICS) option can accommodate up to 14 passengers. With a standard backup camera and a standard child checkmate system to fulfill new federal mandates, the Prodigy DRW is ideal for student-centric operations such as daycares and schools.

Floorplans

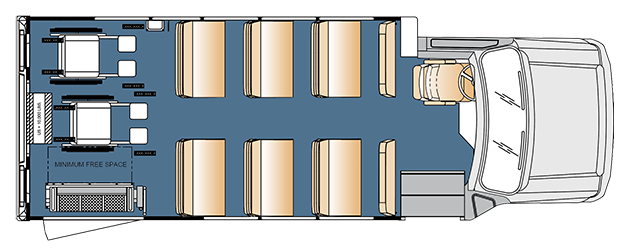

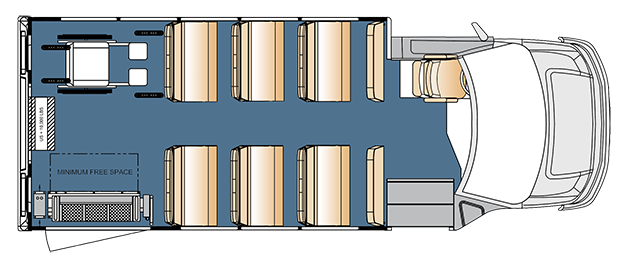

  • 12 PASSENGER 2 WHEELCHAIR PLUS DRIVER
  • 14 PASSENGER PLUS DRIVER

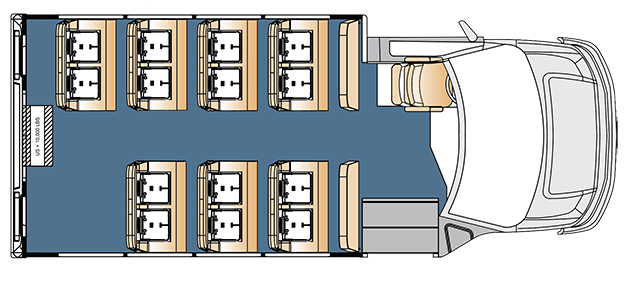

  • 14 PASSENGER WITH ICS SEATING PLUS DRIVER

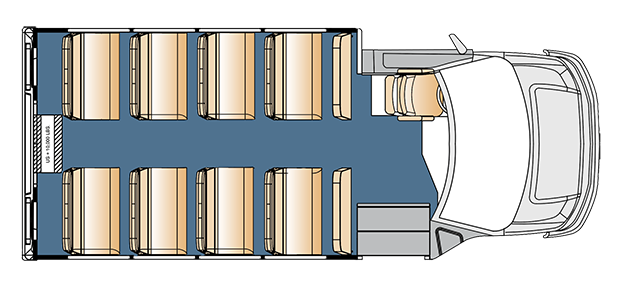

  • 16 PASSENGER PLUS DRIVER
Previous Next

Standard Specifications

    • Sections:
      • 4.00
      • 4.50
      • 5.00
    • Length:
      • 240’
      • 254’
      • 267’
    • Wheelbase:
      • 139”
      • 139”
      • 139/159”
    • Chassis*:
      • G3500
      • G3500
      • G3500
    • Engine:
      • 6.0L Gas
      • 6.0L Gas
      • 6.0L Gas
    • GVWR:
      • 12300 lb.
      • 12300 lb.
      • 12300 lb.
    • Passenger Capacity:
      • 22, 24, 28
      • 24
      • 24
    • Overall Width:
      • 96”
      • 96”|
      • 96”
    • Overall Height:
      • 115”
      • 115”
      • 115”
    • Interior Width:
      • 92.5”
      • 92.5”
      • 92.5”
    • Interior Height:
      • 78”
      • 78”
      • 78”
    • Ground To Int. Floor:
      • 28”
      • 28”
      • 28”
    • Ground to 1st Step:
      • 11”
      • 11”
      • 11”
    • Step Riser:
      • 8”
      • 8”
      • 8”
    • Step Tread:
      • 10”
      • 10”
      • 10”
    • Step Width:
      • 29.5”
      • 29.5”
      • 29.5”
    • Entry Door Clear Opening With One Grab Rail:
      • 26”
      • 26”
      • 26”
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5”
      • 23.5”
      • 23.5”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Sections:
      • 5.50
      • 5.50
    • Length:
      • 282’
      • 294’
    • Wheelbase:
      • 159”
      • 159”
    • Chassis*:
      • G4500
      • G4500
    • Engine:
      • 6.0L Gas
      • 6.0L Gas
    • GVWR:
      • 14200 lb.
      • 14200 lb.
    • Passenger Capacity:
      • 30
      • 34
    • Overall Width:
      • 96”
      • 96”
    • Overall Height:
      • 115”
      • 115”
    • Interior Width:
      • 92.5”
      • 92.5”
    • Interior Height:
      • 78”
      • 78”
    • Ground To Int. Floor:
      • 28”
      • 28”
    • Ground to 1st Step:
      • 11”
      • 11”
    • Step Riser:
      • 8”
      • 8”
    • Step Tread:
      • 10”
      • 10”
    • Step Width:
      • 29.5”
      • 29.5”
    • Entry Door Clear Opening With One Grab Rail:
      • 26”
      • 26”
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5”
      • 23.5”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Sections:
      • 4.00
      • 4.00
      • 4.00
    • Length:
      • 240’
      • 250’
      • 259’
    • Wheelbase:
      • 138”
      • 138”
      • 138”
    • Chassis*:
      • E350
      • E350
      • E350
    • Engine:
      • 6.2L Gas/6.8L Gas
      • 6.2L Gas/6.8L Gas
      • 6.2L Gas/6.8L Gas
    • GVWR:
      • 11500 lb.
      • 11500 lb.
      • 11500 lb.
    • Passenger Capacity:
      • 22, 22, 20
      • 22, 22, 20
      • 22, 22, 20
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 115”
      • 115”
      • 115”
    • Interior Width:
      • 92.5”
      • 92.5”
      • 92.5”
    • Interior Height:
      • 78”
      • 78”
      • 78”
    • Ground To Int. Floor:
      • 28”
      • 28”
      • 28”
    • Ground to 1st Step:
      • 10”
      • 10”
      • 10”
    • Step Riser:
      • 9”
      • 9”
      • 9”
    • Step Tread:
      • 10”
      • 10”
      • 10”
    • Step Width:
      • 29.5”
      • 29.5”
      • 29.5”
    • Entry Door Clear Opening With One Grab Rail:
      • 26”
      • 26”
      • 26”
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5”
      • 23.5”
      • 23.5”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Sections:
      • 5.00
      • 5.50
      • 6.00
    • Length:
      • 267’
      • 277’
      • 288’
    • Wheelbase:
      • 158”
      • 158”
      • 158”
    • Chassis*:
      • E450
      • E450
      • E450
    • Engine:
      • 6.2L Gas/6.8L Gas
      • 6.2L Gas/6.8L Gas
      • 6.2L Gas/6.8L Gas
    • GVWR:
      • 14500 lb.
      • 14500 lb.
      • 14500 lb.
    • Passenger Capacity:
      • 28
      • 30
      • 30
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 115”
      • 115”
      • 115”
    • Interior Width:
      • 92.5”
      • 92.5”
      • 92.5”
    • Interior Height:
      • 78”
      • 78”
      • 78”
    • Ground To Int. Floor:
      • 28”
      • 28”
      • 28”
    • Ground to 1st Step:
      • 10”
      • 10”
      • 10”
    • Step Riser:
      • 9”
      • 9”
      • 9”
    • Step Tread:
      • 10”
      • 10”
      • 10”
    • Step Width:
      • 29.5”
      • 29.5”
      • 29.5”
    • Entry Door Clear Opening With One Grab Rail:
      • 26”
      • 26”
      • 26”
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5”
      • 23.5”
      • 23.5”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
