E-Quest

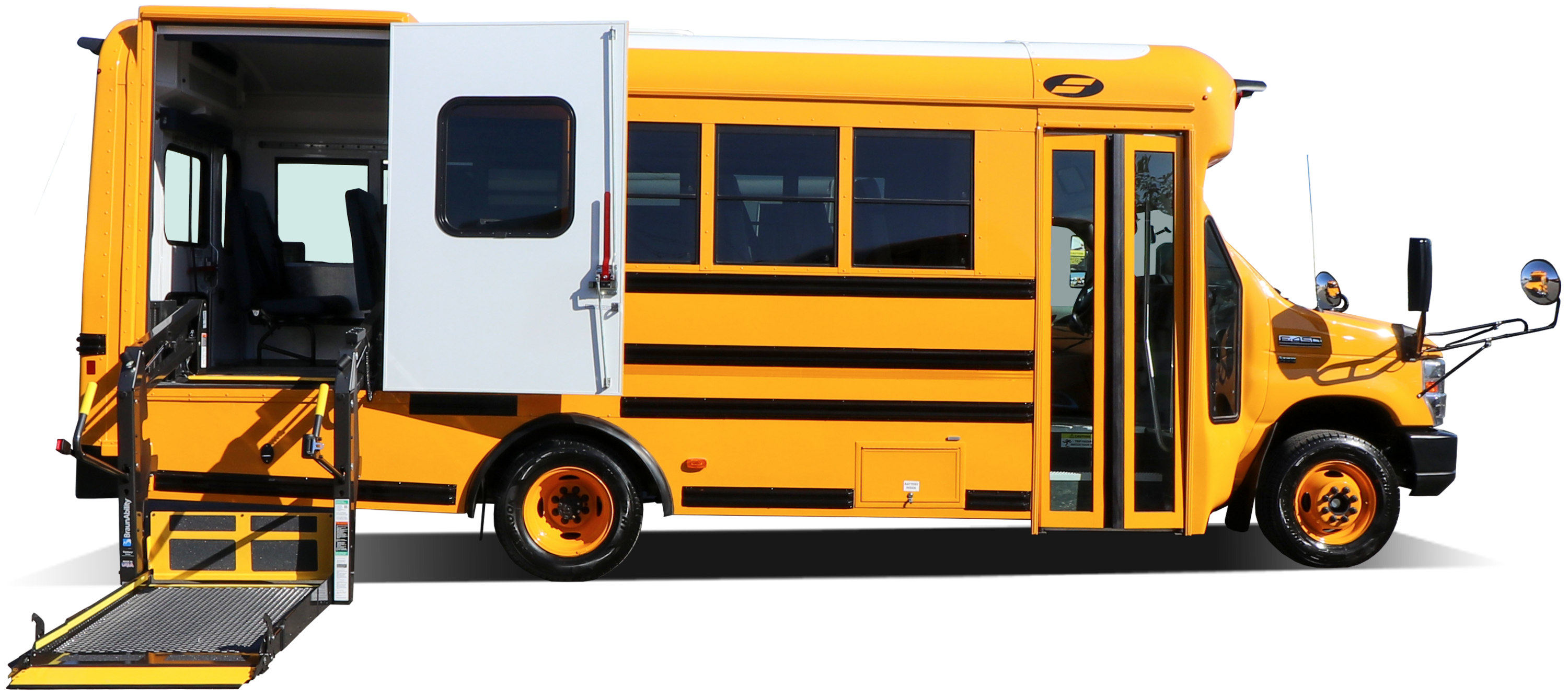

The Starcraft E-Quest DRW is an all-electric Type A school buses built on the Ford E-450 chassis and is powered by Phoenix Motorcars. Phoenix Motorcars specializes in manufacturing leading-edge electric drivetrains, quickly establishing itself as a leading manufacturer of all-electric transportation. This medium-duty shuttle bus is backed by Phoenix’s  Starcrtaft’s unprecedented 5-year/100,000 mile standard warranty. Floorplans can accommodate a maximum of 23 ambulatory passenger seats or up to 2 ADA positions. Standard safety features include a welded steel cage body construction, a backup camera, and a child check checkmate system.

Floorplans

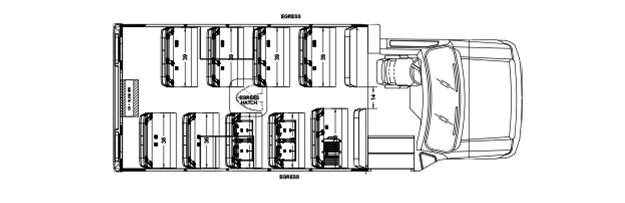

  • 23 PASSENGER WITH 87kWh BATTERY PLUS DRIVER

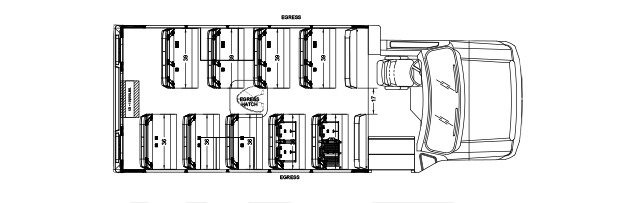

  • 22 PASSENGER WITH 105kWh BATTERY PLUS DRIVER

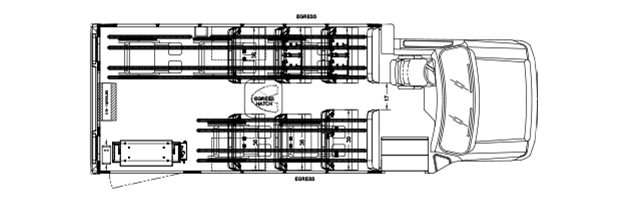

  • 13 PASSENGER 5 WHEELCHAIR WITH 87kWh BATTERY PLUS DRIVER
  • 12 PASSENGER 5 WHEELCHAIR WITH 105kWh BATTERY PLUS DRIVER
Previous Next

Standard Specifications

    • Length:
      • 277'
      • 288'
    • Wheelbase:
      • 158"
      • 158"
    • Chassis:
      • E450
      • E450
    • Engine:
      • Phoenix-E200 (TM4)
      • Phoenix-E200 (TM4)
    • GVWR:
    • Passenger Capacity:
      • 23
      • 13
    • Overall Width:
      • 96"
      • 96"
    • Overall Height:
      • 115"
      • 115"
    • Interior Width:
      • 92.5"
      • 92.5"
    • Interior Height:
      • 78"
      • 78"
    • Ground To Int. Floor:
      • 29"
      • 29"
    • Ground to 1st Step:
      • 10"
      • 10"
    • Step Riser:
      • 9"
      • 9"
    • Step Tread:
      • 10
      • 10
    • Step Width:
      • 29.5"
      • 29.5"
    • Entry Door Clear Opening With One Grab Rail:
      • 26"
      • 26"
    • Entry Door Clear Opening With Two Grab Rail:
      • 23.5"
      • 23.5"
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 22’
      • 24’
      • 25’
    • Wheelbase:
      • 158”
      • 158”
      • 190”
    • Chassis:
      • E450
      • E450
      • E450
    • Engine:
      • 6.8L Gas
      • 6.8L Gas
      • 6.8L Gas
    • GVWR:
      • 12,500lb.
      • 14,500lb.
      • 14,500lb.
    • Passenger Capacity:
      • 21
      • 21
      • 25
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 115”
      • 116”
      • 116”
    • Interior Width:
      • 93”
      • 93”
      • 93”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 30”
      • 30”
      • 30”
    • Ground to 1st Step:
      • 12”
      • 12”
      • 12”
    • Step Riser:
      • 9”
      • 9”
      • 9”
    • Step Tread:
      • 11.5”
      • 11.5”
      • 11.5”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
